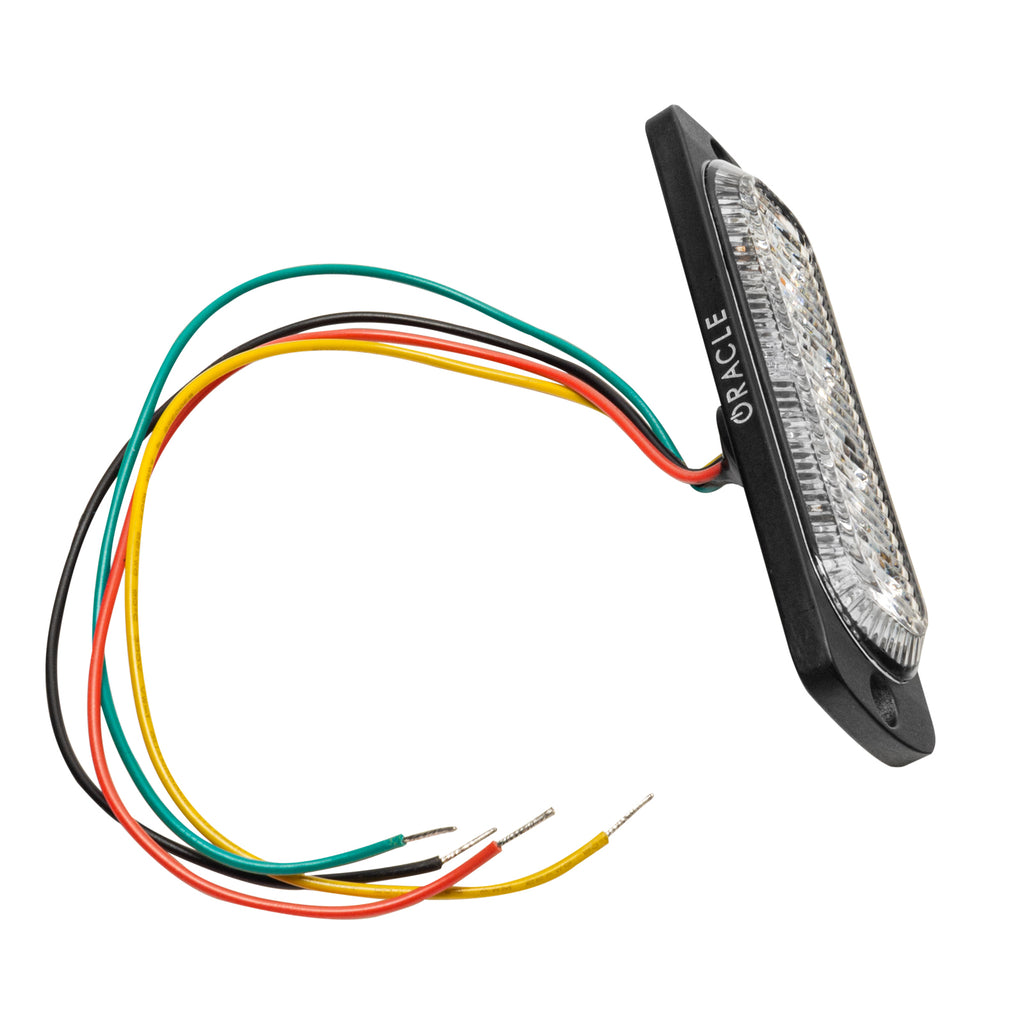

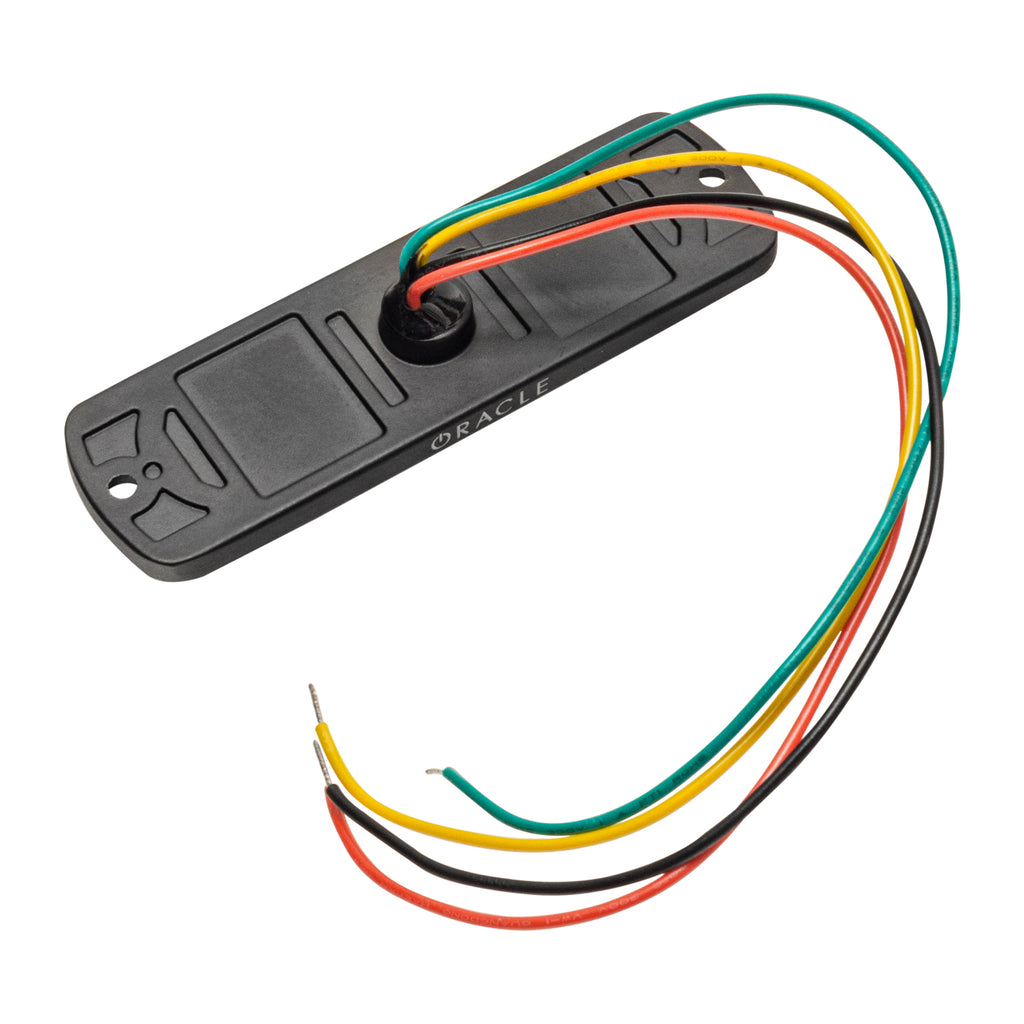

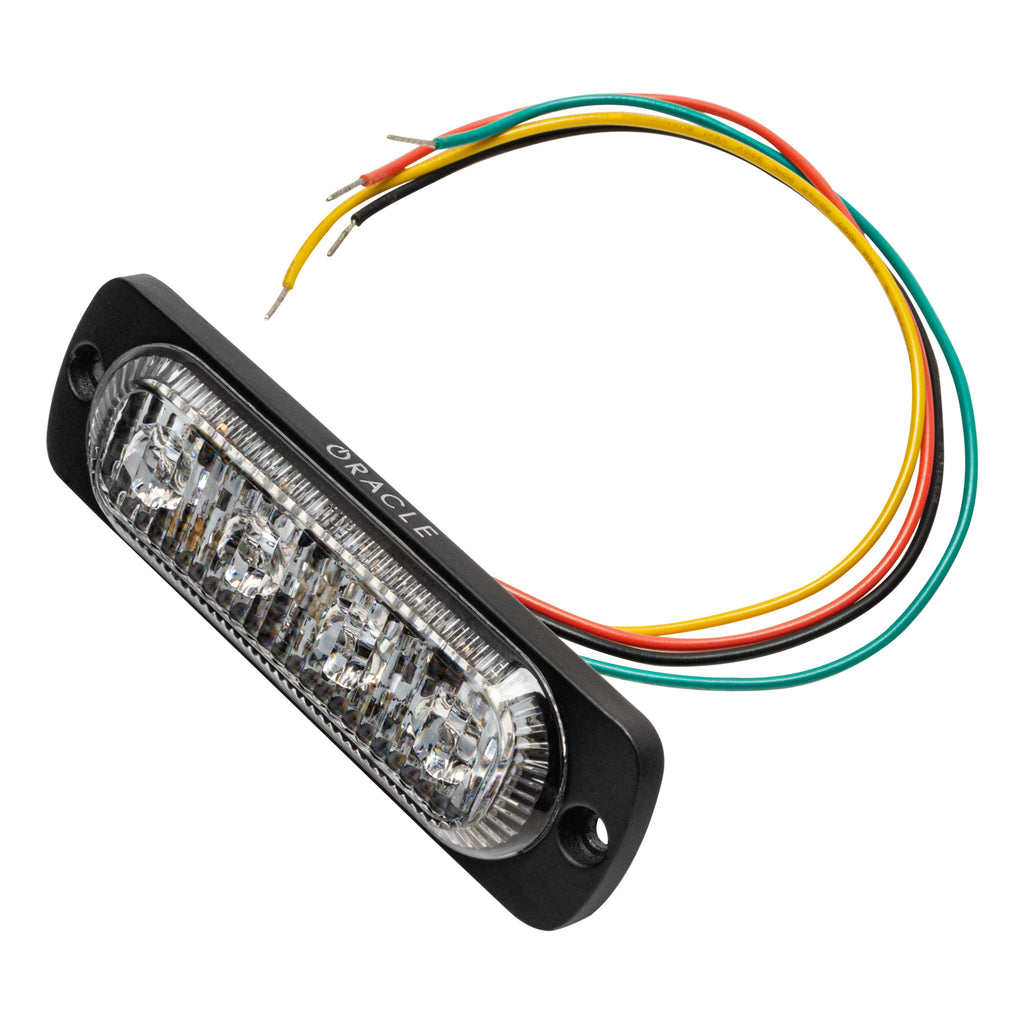

ORACLE Lighting 4 LED Slim Strobe

The ORACLE Lighting 4 LED Slim Strobe delivers high-visibility emergency signaling in a compact, flush-mount package. Built with solid-state LED technology, it offers a bright output with a 100,000-hour lifetime, engineered for reliability on the toughest duty days for First Responders and Law Enforcement Officers. The unit includes a built-in controller module with 19 selectable patterns—no external LED controller needed.

Key measurements and build

• Width: 1" • Length: 3.75" • Height: 1.2"
• LEDs: 4
• Mounting: Flush mount design
• Lifetime: 100,000 hours

Pattern options

• Random (default)
• Steady
• Single
• Mega
• Double
• Triple Quad
• Quint
• 8 Flash
• Single-Quad
• Single H/L
• Single-Triple-Quint

How to switch patterns

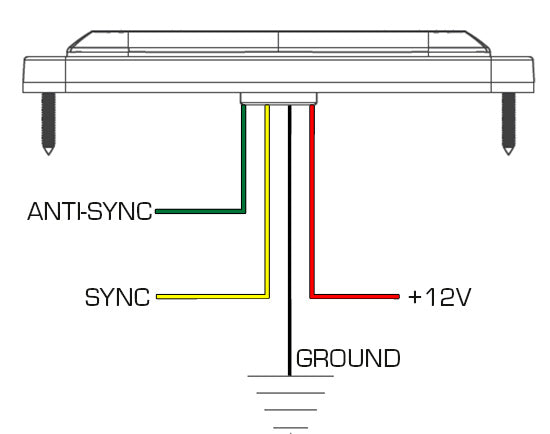

To select a Flash Pattern, apply +12V to the Yellow Wire:

• Less than 1 second: advance to the next pattern
• More than 1 second: go to the previous pattern
• More than 5 seconds: reset to the default pattern

Package includes

1 x ORACLE 4 LED Slim Strobe
